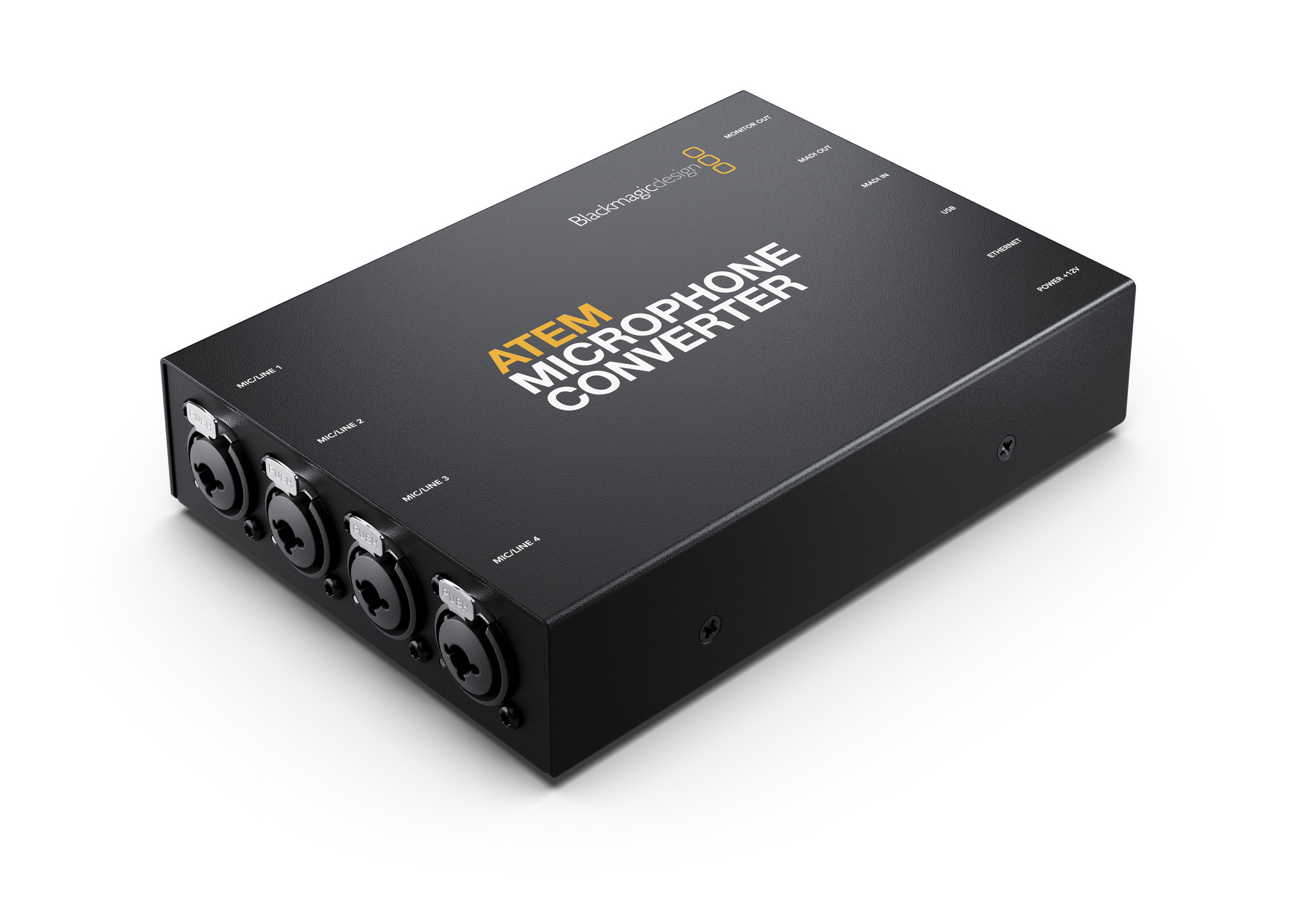

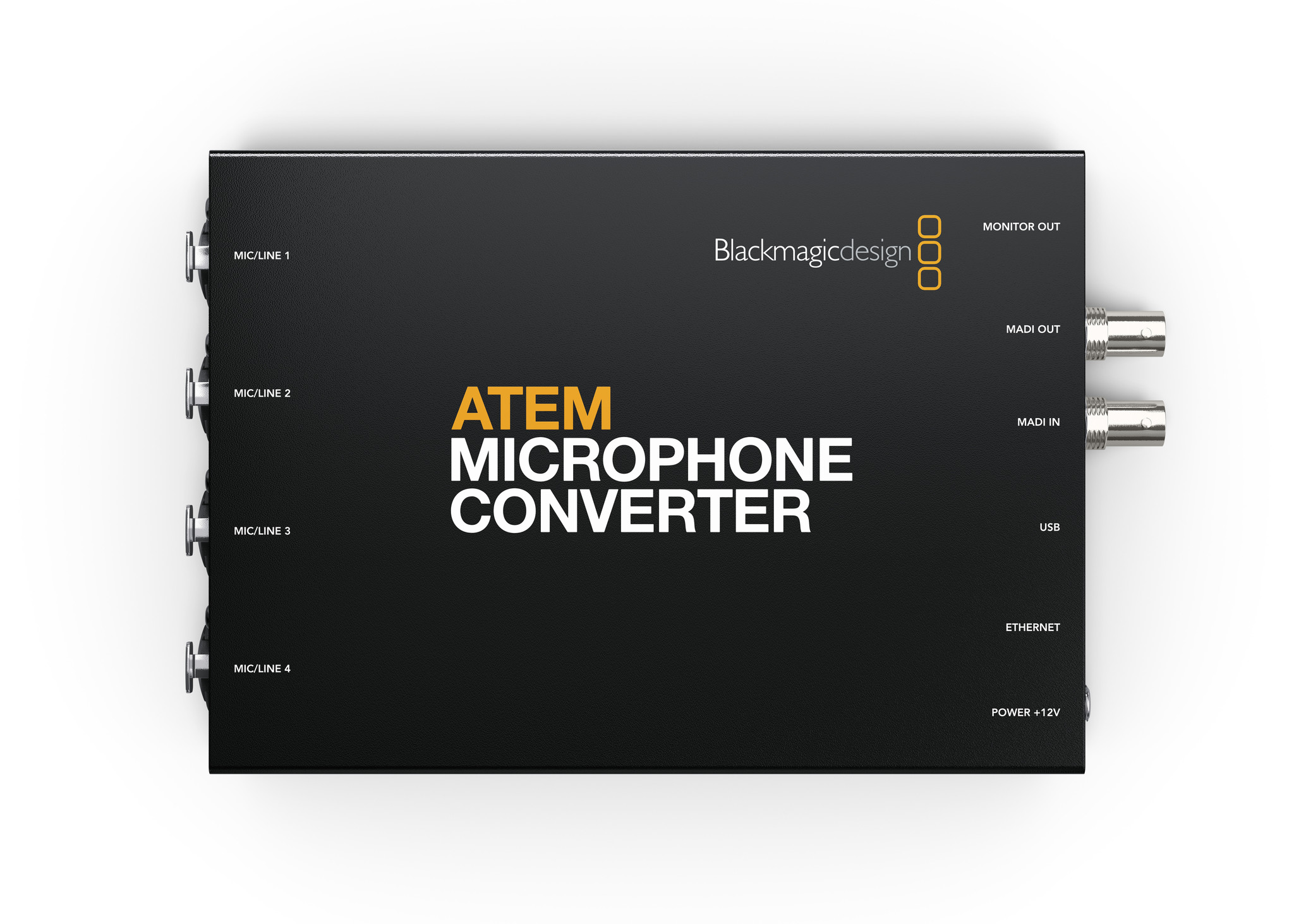

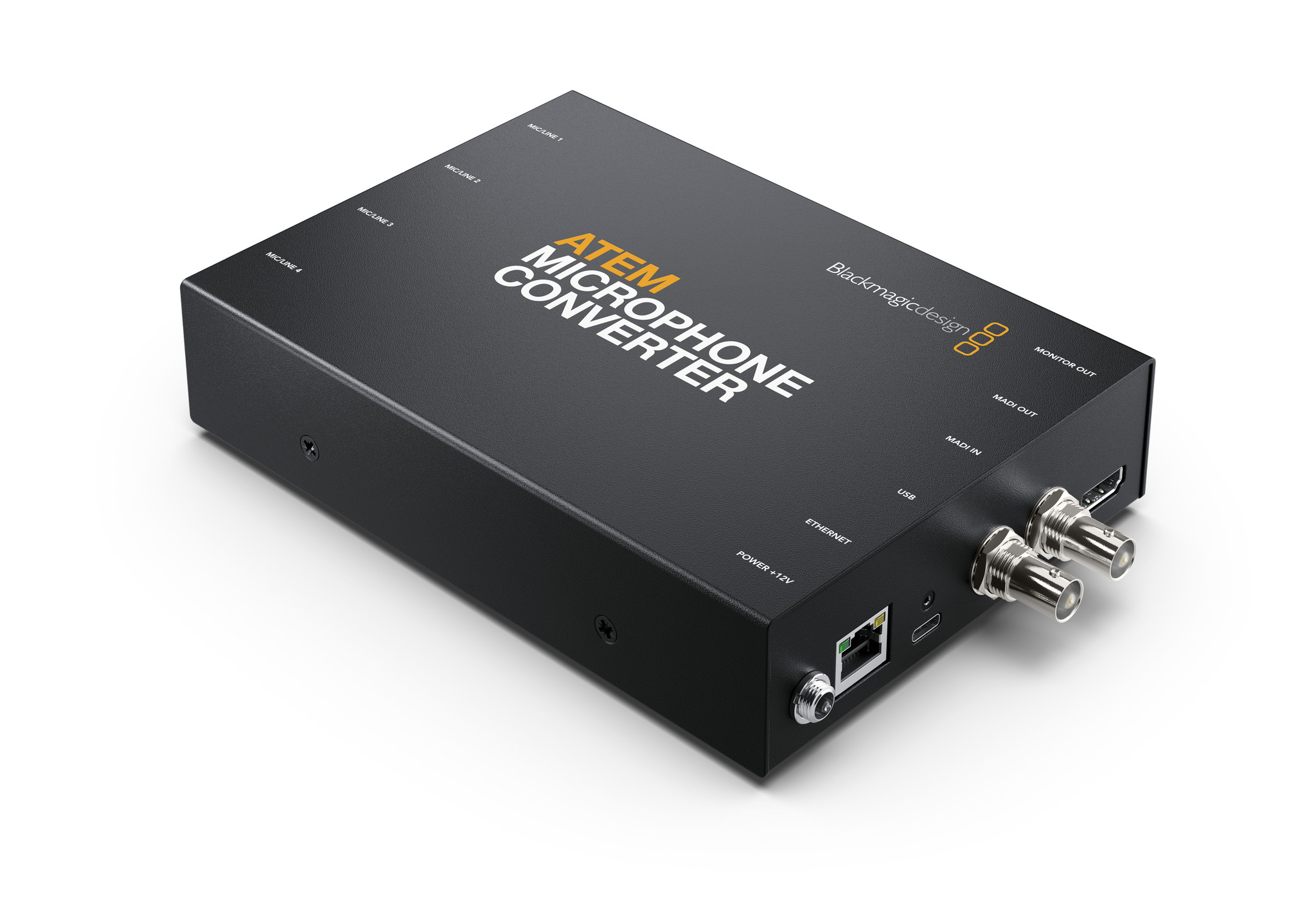

Blackmagic design ATEM Microphone Converter
- ECO friendly webshop
- Persoonlijk advies
- 25 jaar ervaring
- Meer dan 4.000 producten
- Secure payment
- Registreer en ontdek je voordelen
Specificaties
Gerelateerde producten
Informatie
Now it’s easy to expand the MADI input on the ATEM Television Studio switchers to add multiple microphones or external audio mixer sources. The ATEM Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no setup required and additional units can even be daisy chained for more sources. Each converter has 4 analog inputs that are mic/line selectable and have phantom power. The design features amazing audio quality with an extremely low noise floor, a wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each separate input that work together to extend dynamic range! There is also an HDMI monitoring output with scrolling audio waveforms.
Connections
Analog Audio Inputs
4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phacntom power.
MADI Inputs
1 x BNC supports 64 channel MADI digital audio
MADI Outputs
1 x BNC supports 64 channel MADI digital audio
HDMI Video Outputs
1 x monitor out.
Computer Interface
1 x USB-C with locking screw
Ethernet
Supports 10/100/1000 BASE‑T.
HDMI Output Standards
HD Video Standards
1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
HDMI Monitoring
Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
Audio
ADCs Per Input
8
Digital Preamp
32-bit
Dynamic Range
131dB(A)
Noise Floor
-129dBV
Total Harmonic Distortion at full scale
0.002%
Output Sample Depth
24-bit
Output Sampling Rate
48KHz
MADI Compliance
AES10-2020
Software
Software Control
Mac™ and Windows™ software upgrade via USB or Ethernet.
Internal Software Upgrade
Via downloadable utility application.
Operating Systems
Mac 12.0 Monterey,
Mac 13.0 Ventura or later.
Windows 10, 64-bit.
Windows 11.
Settings Control
Software Settings Control
USB and Ethernet via free software utility.
Hardware Switches
Mini switches for selecting mic or line level and setting +48V phantom power on/off.
Power Requirements
Power Supply
1 x External 12V power supply with locking connector.
Power Consumption
12W max.
Operational Voltage Range
12V to 17.5V DC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (‑4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included
ATEM Microphone Converter
External 12V DC power supply with locking connector and international socket adapters for most countries.
Welcome wallet with QR code for software download
Warranty
3 Year Limited Manufacturer’s Warranty.
