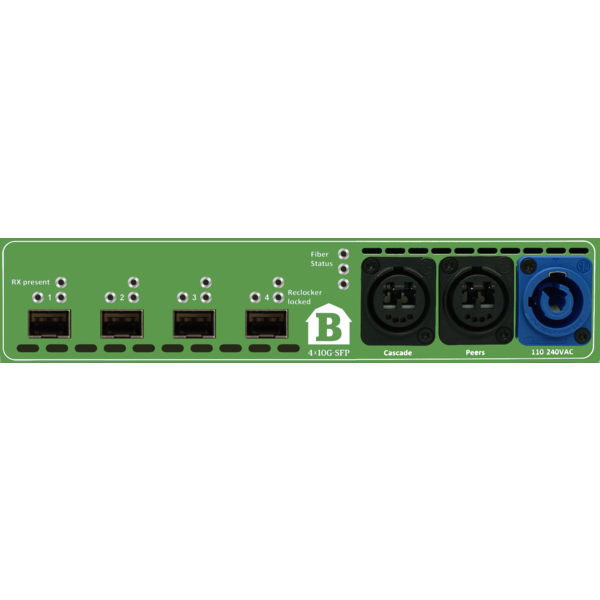

Barnfind Barncolor 4x10G SFP-Flex

3.073,40 Incl. btw€2.540,00 Excl. btw Niet op voorraad, check levertijd
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Barnfind
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
2 - 3 weken

Informatie

Designed to supplement the highly flexible BarnColor system, the new BarnColor 4xSFP-Flex provides 4 SFP transceiver cages on each unit and allows you to configure your BarnColor-Flex pairs with the signal processing SFPs needed for your unique application. Up to four different color units can be cascaded to each other; the system supports up to 16 transceiver cages on each side and allows the transport of 32 signal feeds; 16 feeds forward and 16 returns. Can be combined with any models in different colors.

Examples of SFPs being used:

  • PtP (any wavelength)
  • Multimode
  • BNC-SFP
  • HDMI-SFP
  • Analog Video-SFP
  • IP encap/decap-SFP
  • RJ45 for ethernet



SFP-Ports
• SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, 1 Gbit/s Ethernet, 10 Gbit/s Ethernet

• Multirate reclocking of outputs 270Mbps – 10Gbps

Fiber port (Cascade and Peer)
• Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
• SMPTE 297M

Power plug
• Neutrik powerCON
• 100-240VAC, 15Watt

Physical size
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg
