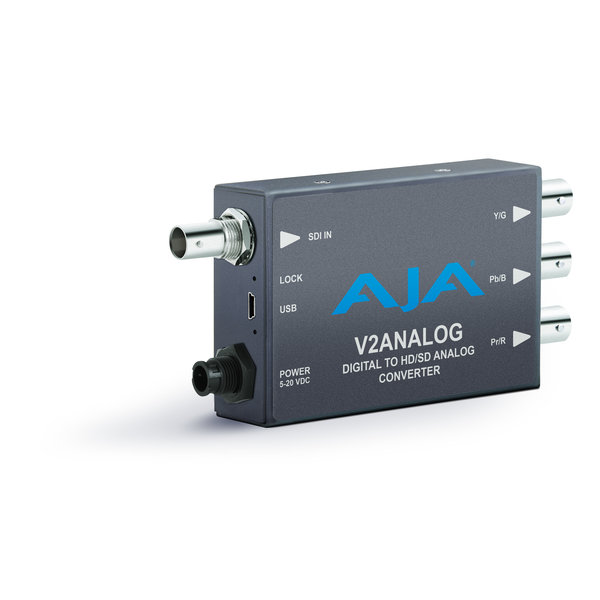

AJA V2Analog / HD/SD-SDI to Analog Mini-Converter

Informatie

V2Analog is a high-quality, cost-effective digital to analog video converter that's an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows. V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.

Features:

• 10-bit AJA digital to analog conversion
• Low power, compact size
• HD/SD-SDI input
• YPbPr/RGB Component, Composite, S-Video output
• Configure via DIP switch or USB port and supplied Mini-Config software
• Five year warranty

Extensive format support

V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow.

Pristine image quality

Utilizing a full 10-bit data path and AJA's high-quality digital-to-analog technology, V2Analog maintains the most detail possible to ensure a quality conversion at an extraordinary price.
