AJA UDC / Up/Down/Cross-Converter

1.140,97 Incl. btw€942,95 Excl. btw Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere converters in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
AJA
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
2 - 3 weken

Informatie

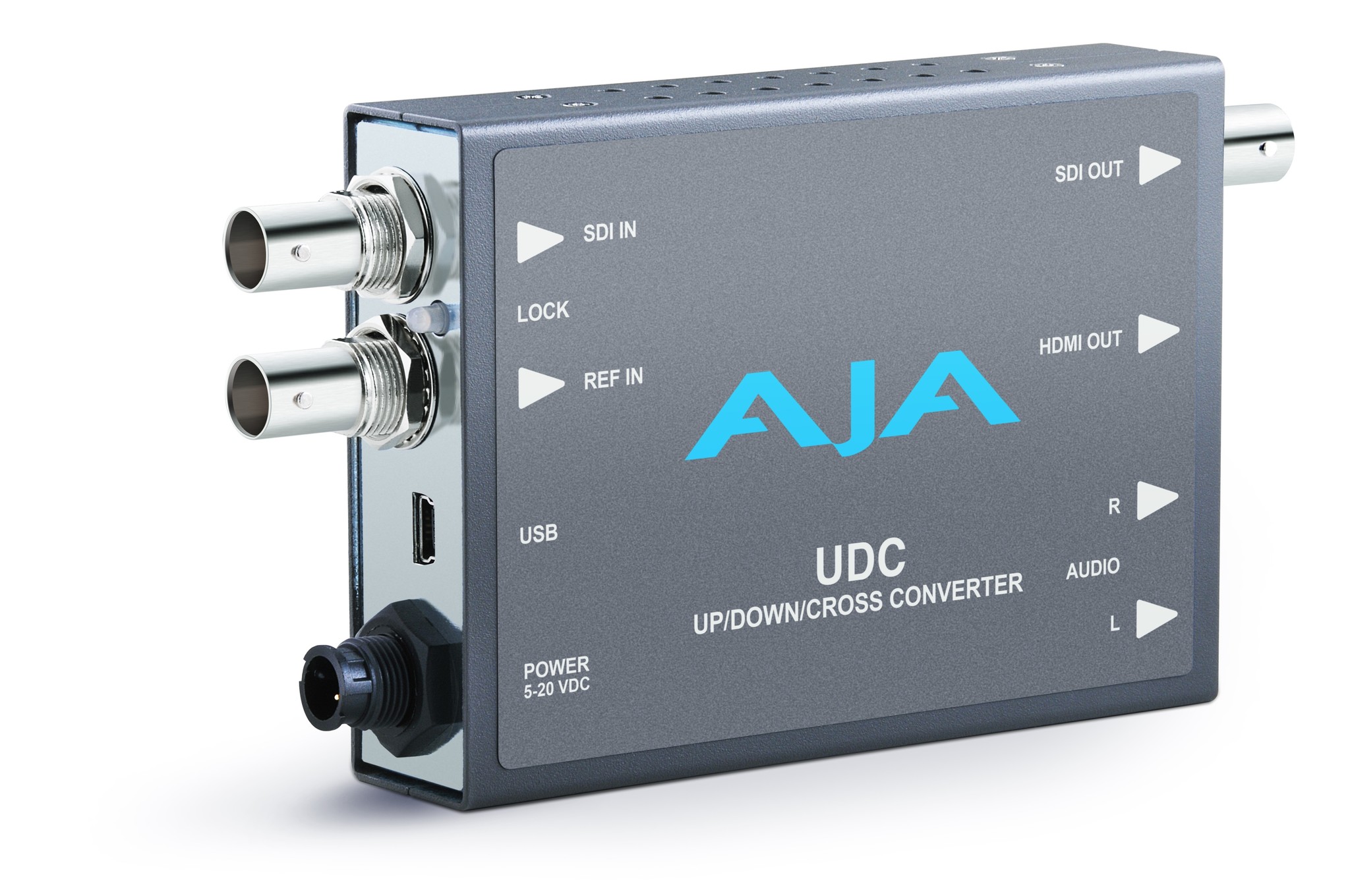

The UDC is a broadcast quality Up/Down/Cross Mini-Converter which can convert between SD, HD, and 3G video formats. Using the same AJA industry leading conversion technology as in our model FS2, the UDC provides very high quality conversions at a low price. I/Os include SD/HD/3G SDI Input and Output, HDMI output, and 2-channel RCA style audio output. The UDC can be controlled by local dipswitches with additional control available via USB and AJA's MiniConfig application. A Reference Input allows the UDC to be locked to a local reference.

Features

  • Up, Down, Cross conversion between 3G, HD and SD video formats
  • Loss of input management: Freeze, Black, or Mute
  • Simultaneous SDI and HDMI outputs
  • 16-channel embedded SDI audio input
  • 16-channel embedded SDI audio output
  • 8-channel HDMI audio output
  • 2 RCA-style analog outputs at -10dBV (nominal)
  • Genlock: Reference Input, SDI Input, or Free Run
  • Configure via DIP switch or USB port and supplied AJA Mini-Config software on PC/Mac
  • Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty
