AJA ROI-DP / DisplayPort to SDI with ROI scaling

988,26 Incl. btw€988,26 Excl. btw Op voorraad
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 2.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
AJA
Beschikbaarheid:
Op voorraad
Levertijd:
Op Voorraad (3 - 7 werkdagen)

Informatie

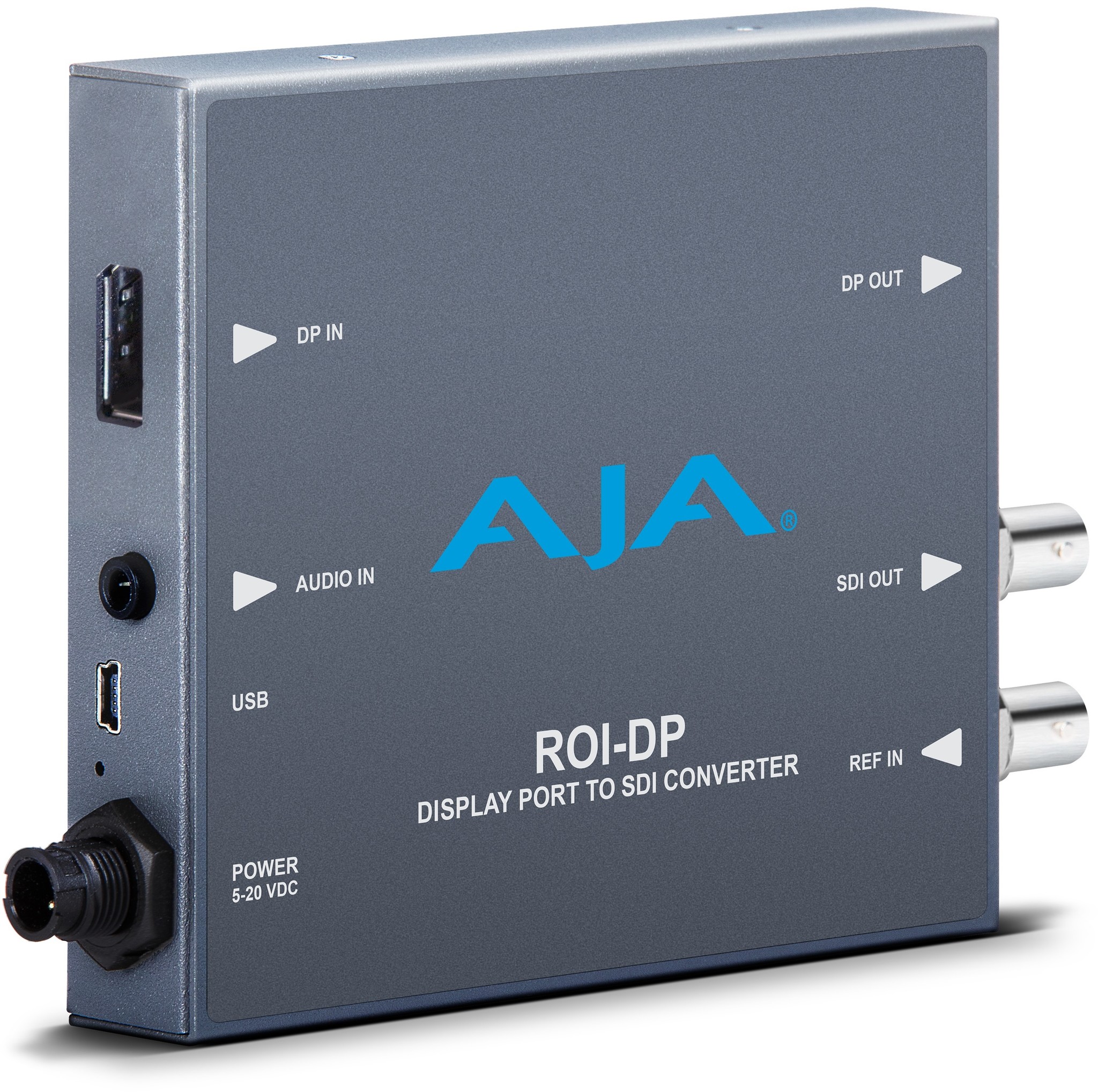

AJA’s ROI-DP Mini-Converter allows exceptionally high quality conversion of computer DisplayPort outputs to baseband video over SDI at an affordable price and a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.

Features

  • DisplayPort (DP) to 3G-SDI conversion
  • Frame Rate Conversion
  • Conversion between Deinterlace and Progressive signals
  • Region of Interest scaling
  • DP input with loop-through
  • Accepts input DP formats up to 1920 x 1200p 60 Hz
  • Configurable SDI output formats from 525i 29.97 to 1920 x 1080p 60 Hz
  • Aspect ratio conversion and image flip/rotation
  • 2-channel embedding of balanced analog audio inputs or 2-channel or 8-channel DP audio
  • Reference Source (Free Run & Ext Ref)
  • Genlock input
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-18VDC power (universal power supply included)
  • Five year warranty
