AJA ADA4 4 Channel Audio A/D and D/A Convertor

Informatie

The ADA4 is a 4-channel converter that can be configured as a 4-channel A/D, a 4-channel D/A, 2-channel A/D and 2-channel D/A, or an AES synchronizer.

Features

• Simultaneous A/D and D/A, or AES Synchronizer
• Full-time AES11 low jitter reference output
• Up to 4 channels of balanced analog to AES/EBU audio
• Up to 4 channels of AES/EBU to balanced analog audio
• Supplied XLR breakout cable
• AES11/Wordclock/Tri-level Sync/Color Black Reference Loop
• Adjustable audio levels
• Sample Rate Conversion between 96 kHz and 48 kHz
• Dipswitch configuration 5-18VDC Power (included with purchase)

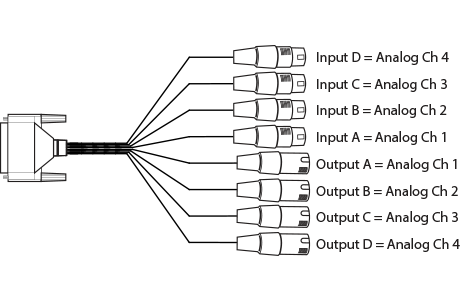

Supplied Breakout Cable

The included breakout cable provides the audio connections for ADA4, allowing 8 channels of AES audio input and output while keeping the overall size of the mini-converter compact and portable.

External Sync

ADA4 accepts an AES11, wordclock or video sync/color black reference input for synchronization. Reference input and synchronization are automatic with a passive looping reference as well as a separate AES sync output.
