The ADDERLink XDIP is designed to improve IT scalability for small to medium businesses. Utilizing a standard 1Gb/s IP network, the XDIP enables users to extend and manage critical PCs with ultra-low latency and HD video. An intuitive API delivers remote control of the matrix and allows the XDIP to be integrated into larger systems, controlled by third party software.
- Powerful KVM extender with KVM matrix functionality
- Configurable as a point to point extender or small matrix solution
- A single unit can be programmed as transmitter or receiver
- Remote control via RESTful API or HTTPS web browser
- Support for Power over Ethernet (PoE)
- Local USB and video feed through ports

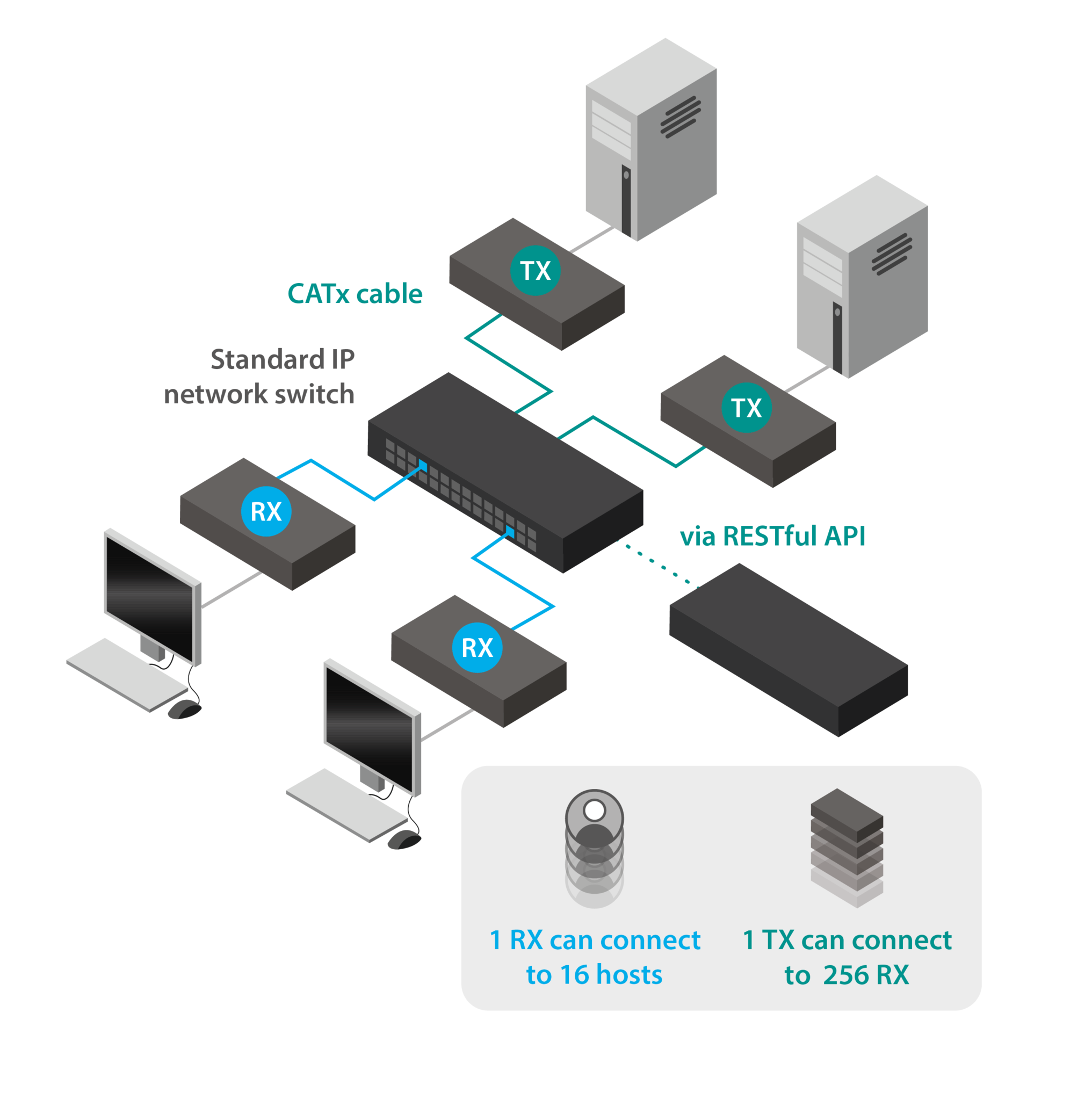

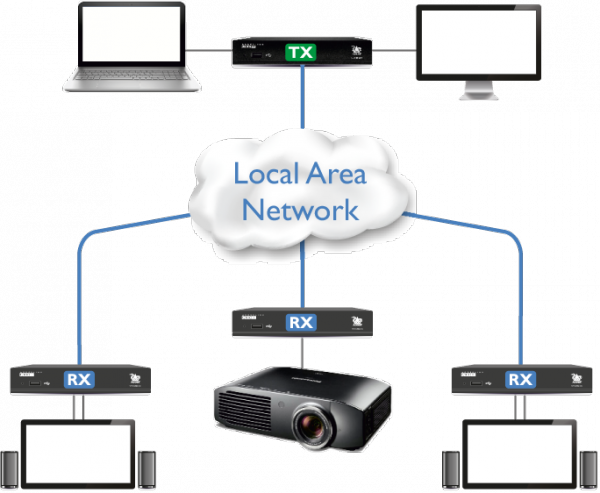

Flexible and scalable: Each XDIP unit can be configured as a simple extender, distributed KVM switch or for AV distribution. Each receiver can see up to 16 sources and each transmitter can connect to up to 256 receivers.
Configurable units: The XDIP user and computer units are identical and can be configured as a transmitter or receiver. This means the solution can be built to suit the application, and should the application change, units can be re-configured to suit.
High quality video: The XDIP supports video resolutions of up to 1920 x 1200 @ 60Hz.
Power over Ethernet (PoE): Compatible with most PoE switches, the XDIP can be easily installed without the need for additional power. Many PoE switches offer redundant power options which the XDIP can leverage for enhanced reliability.
Remote control: Users can remotely control their XDIP network via a RESTful API or HTTPS web browser. By managing the receiver end points through an API, users can control the matrix. The XDIP is designed to work with any third party controller via HTTPS.
Extension distance: Extension distance is linked to the IP standard of 100m with a 40% overhead for safety. Longer distances can be achieved by routing through IP infrastructure.
Audio capability: XDIP delivers bi-directional analog audio (16-bit sampling at 48kHz) passed between the local and remote units. Headphones are also supported (16 to 32 Ohms).
Plug and Play: The XDIP is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected. A simple setup wizard guides the user through set up when the device is connected.
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz
Approvals / Compliance
Supports USB 2.0 HID devices (keyboard, mouse, tablet and touch)
- All computers with HDMI, USB and analog audio can be interfaced to VGA, DVI and DisplayPort™ with appropriate adaptors
0 to 40ºC / 32 to 104ºF

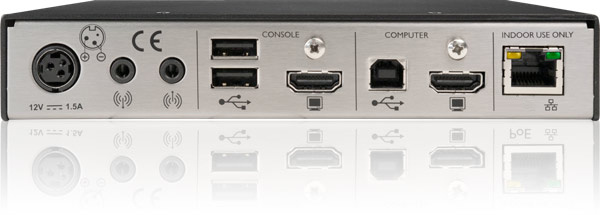

HDMI, Ethernet 8p8c port, USB type B, Audio 3.5mm
HDMI, Audio 3.5mm, 3x USB type A, 8p8c Ethernet port

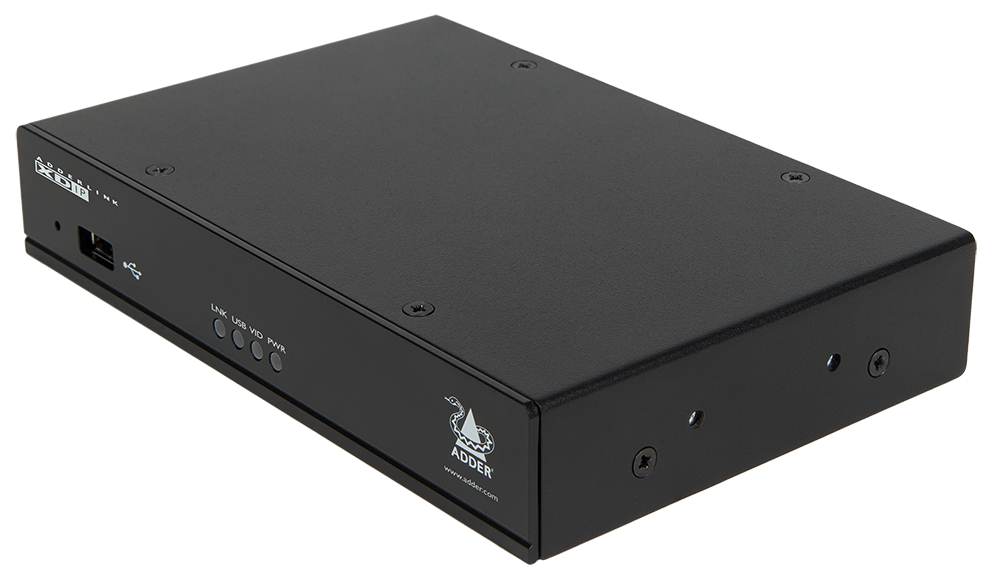

Compact case, robust metal construction
169mm/6.65” (w), 31mm/1.22” (h)
120mm/4.8” (d), 0.6kg/1.3lbs
Packaged size: w248mm x d290 x h55mm
PoE (Power over Ethernet) 802.3af via Ethernet port or 3 Pin Locking DC jack (Optional: 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter)
All known operating systems. No drivers required.
