Adder Dual head digital video, audio, and USB2.0 over 1GbE IP network

Informatie

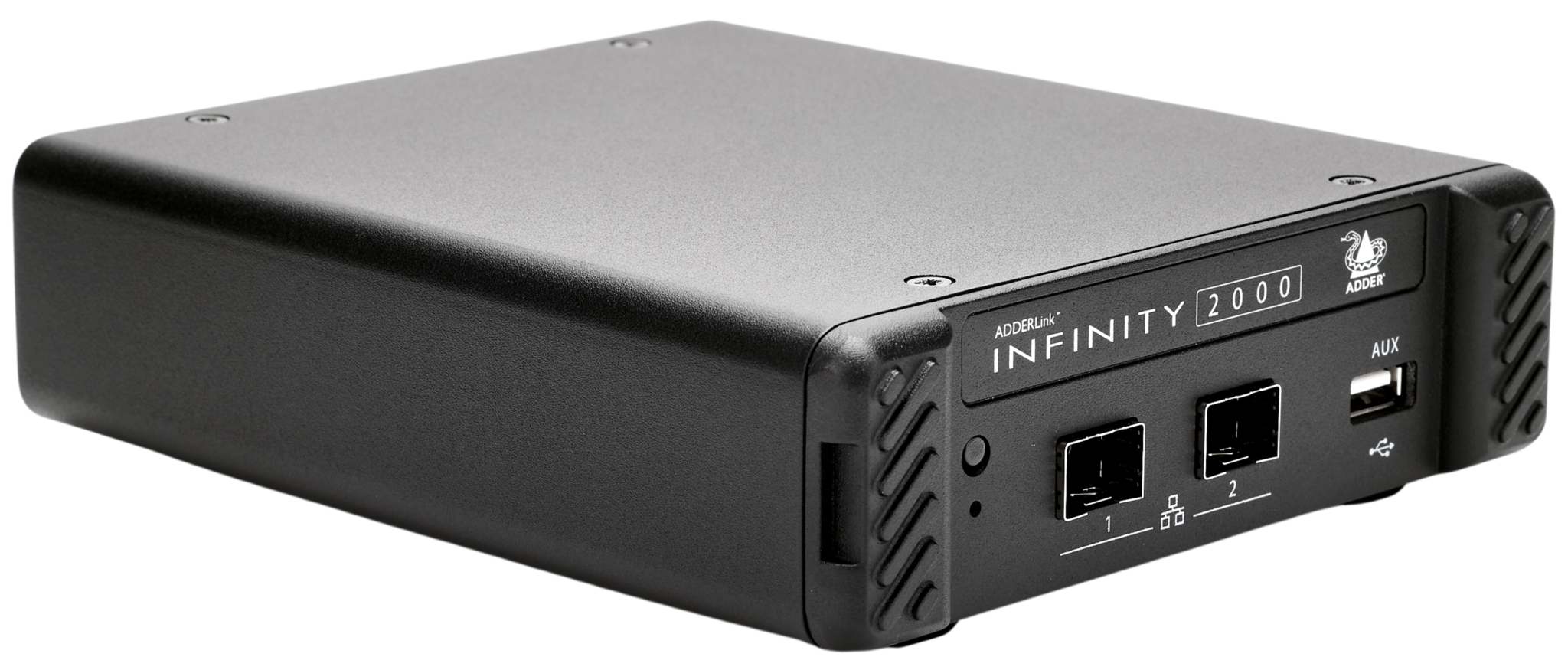

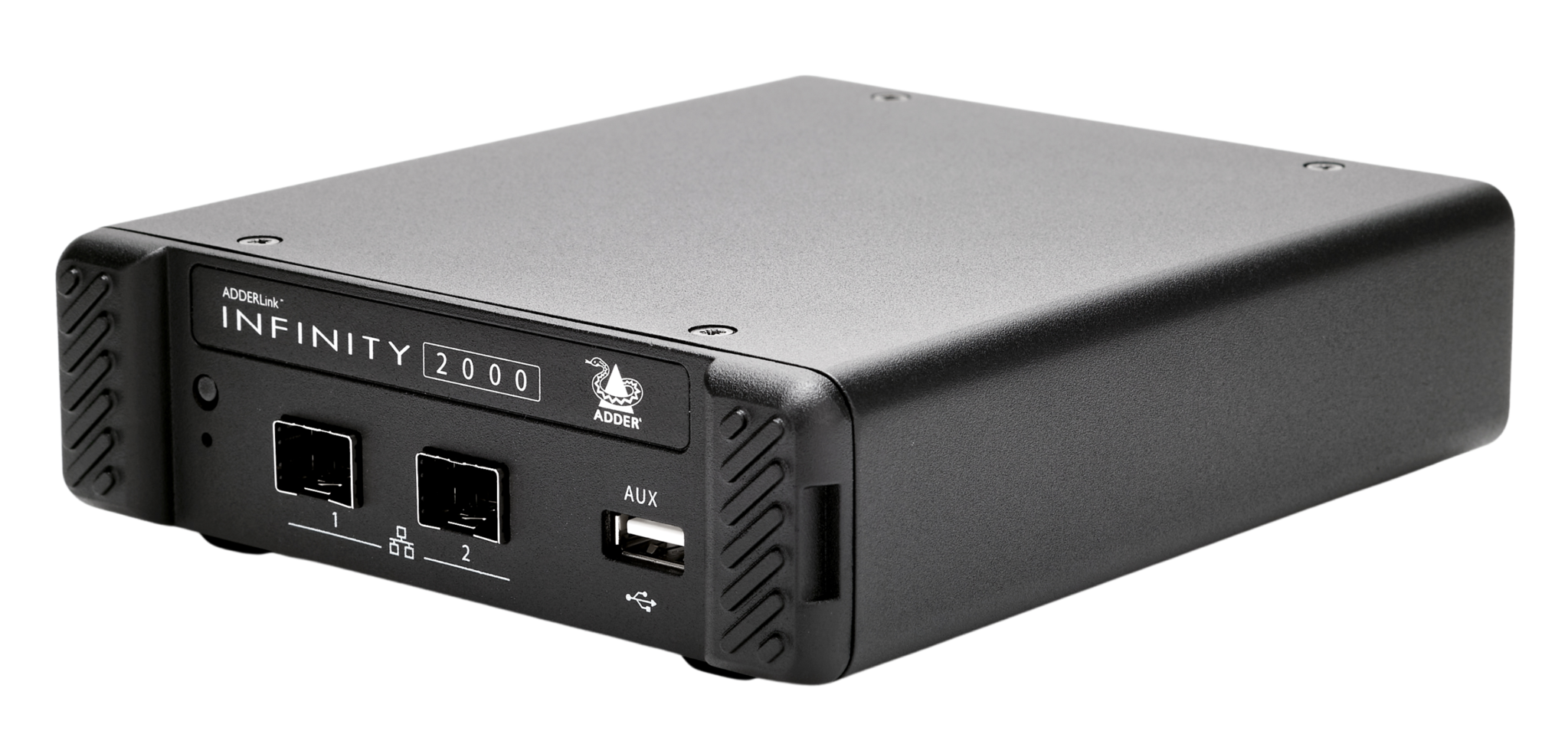

The ADDERLink INFINITY 2124 is a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ALIF matrix solution. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; whilst maintaining a pixel-perfect desktop experience.

• HDMI® connectivity

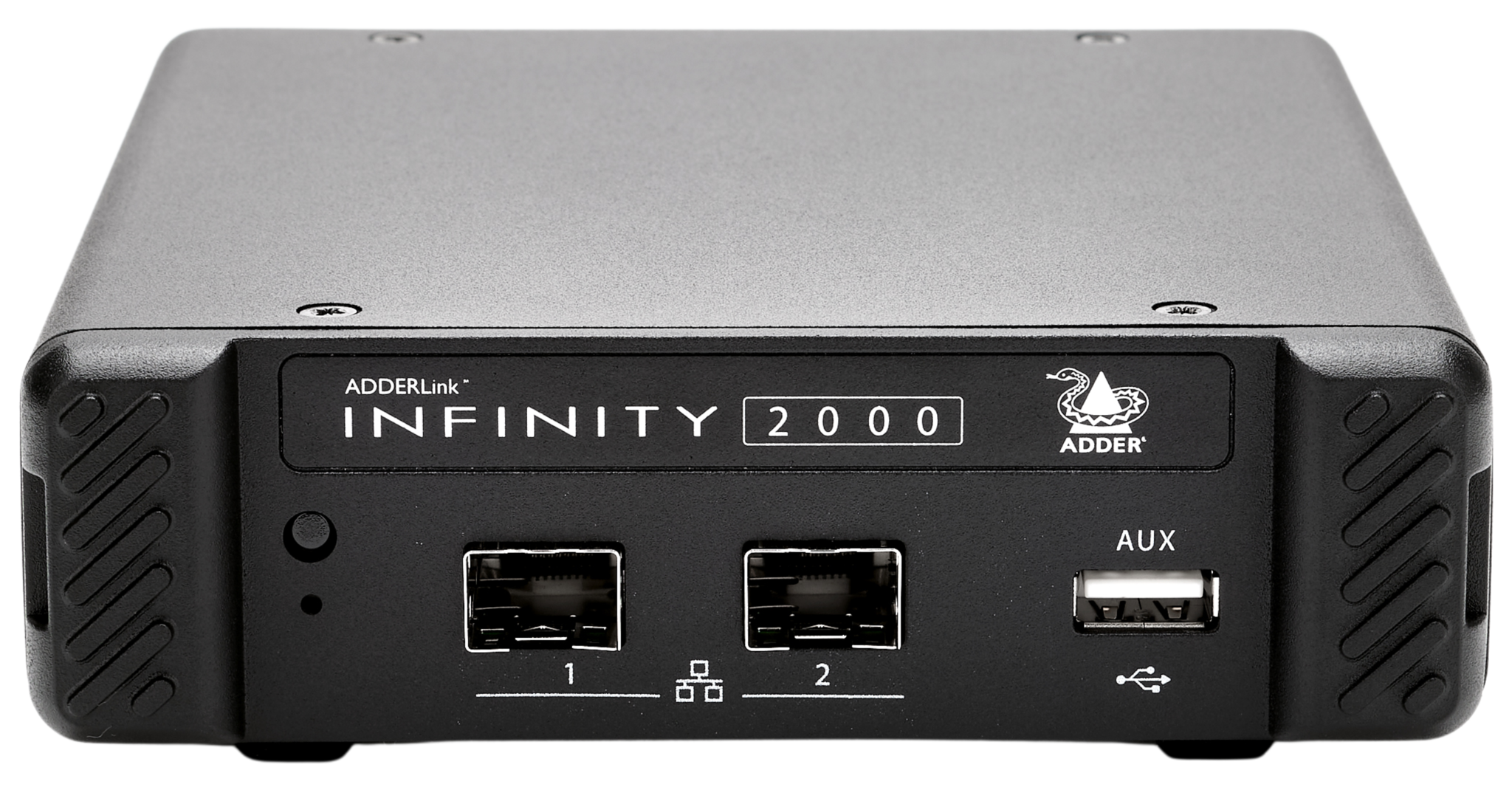

• 2 x SFP ports for maximum flexibility. Can be used with either CATx or fiber modules, allowing distances of up to 20km
• Video resolutions up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
• USB mass storage devices supported plus keyboard, mouse, tablet and touch
• Plug and play
• Redundant network operation

Product Features

• Perfect Digital Video, Real Time Control
  Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ADDERLink INFINITY 2124T (ALIF2124) provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

• Standard IP Technology
  Using standard IP technology allows a choice of single or dual structured cable (CATx) or fiber connections achieving reliable links without interference combined with the resilience of two network port which provide teaming facility for load balanced systems.

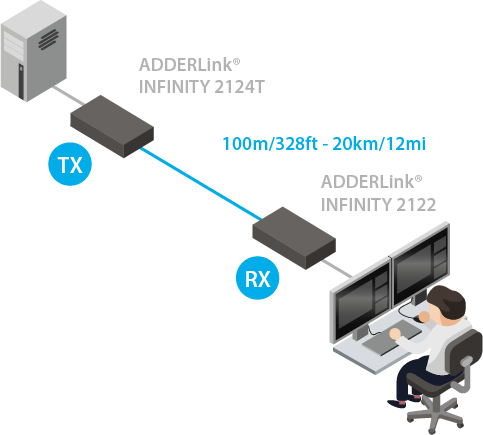

• Unlimited Extension Distances
  Extension distance is not limited to a single 100 meter cable length. If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters, which can be repeated many times. Also fitted with SFP cages to accept fiber optic transceivers for much greater distances.

• USB 2.0 with Class Control
  Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

• Flexible and Scalable Extender or Switch
  Each ALIF21XX series unit can be configured as a simple extender or self managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.

• ADDERLink® INFINITY Matrix
  With the addition of ADDERLink® INFINITY Management system (AIM) you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

• EDID Management
  Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.

• Plug and Play
  ADDERLink® INFINITY devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

• Redundant Network Operation
  The units support network teaming allowing for full network redundancy and increased resilience for mission critical applications.

• Digital Audio
  The ALIF21XX series supports digital audio input via USB and the digital video connector.

Specifications

Video Information (for 1 screen)

Maximum Resolution: 2560 x 1600

Frame Rate: 60

Colour Depth: 8 bpc

Video Information (for 2 screens)

Maximum Resolution: 1920 x 1200

Frame Rate: 60

Colour Depth: 8bpc

Additional Video Information: The system supports up to 1 x2560 x1600 @60Hz or 2x 1920 x1200 @60 Hz

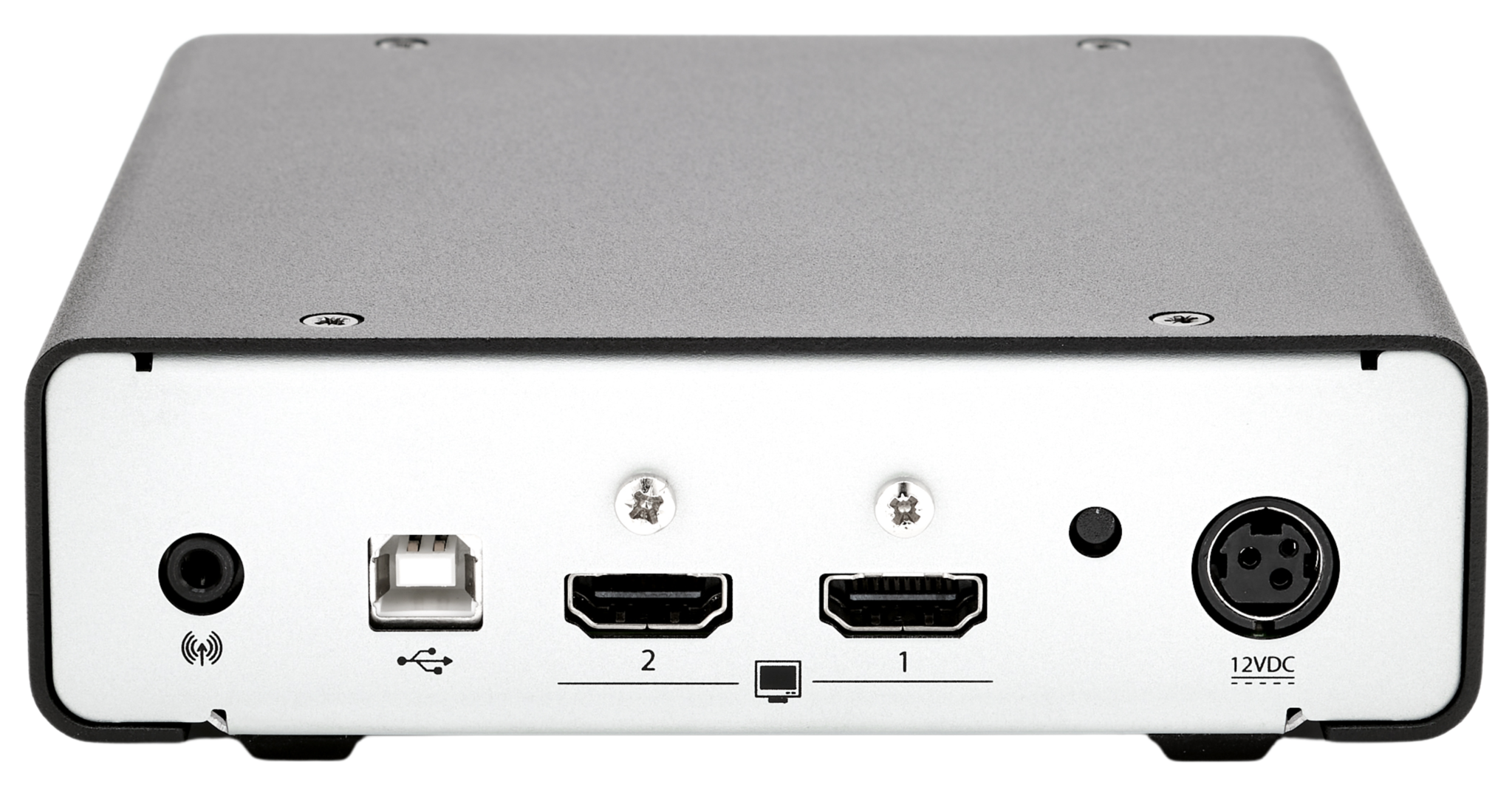

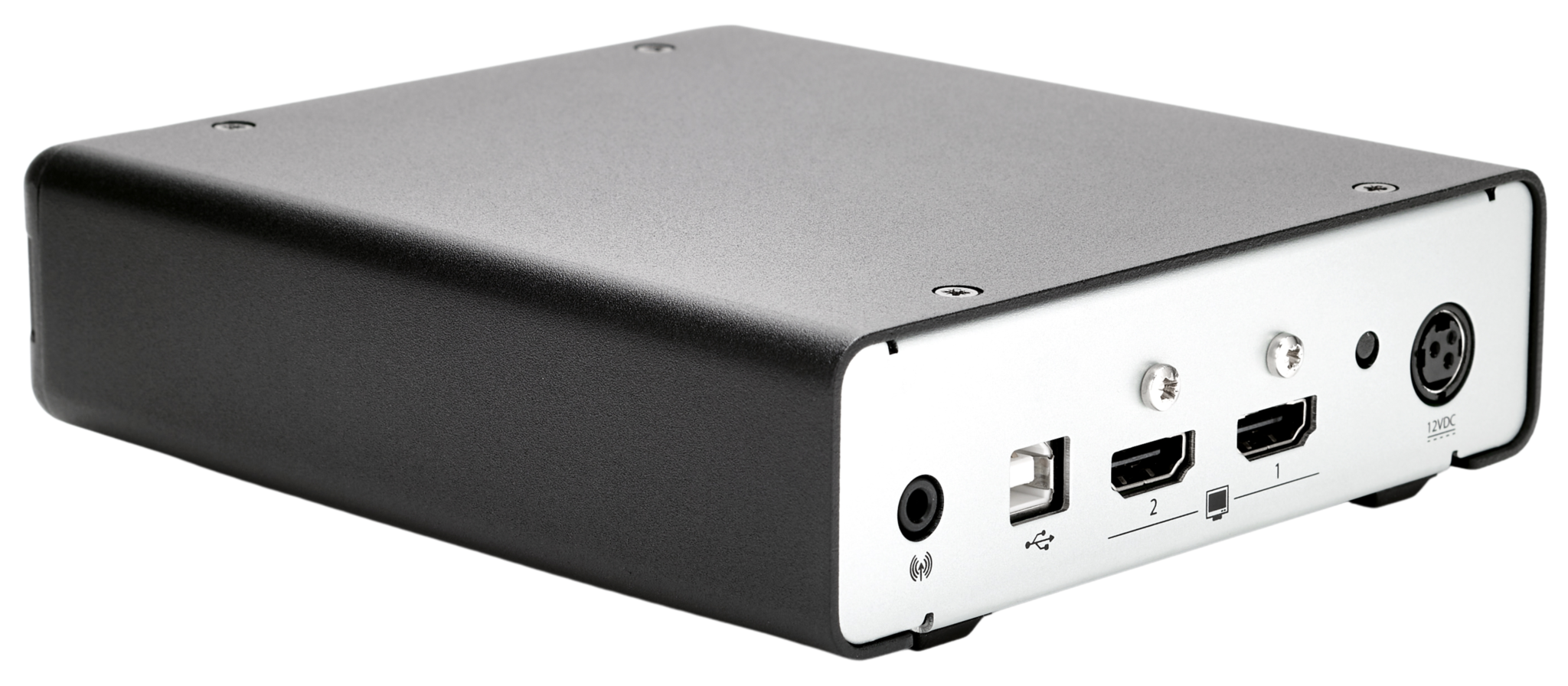

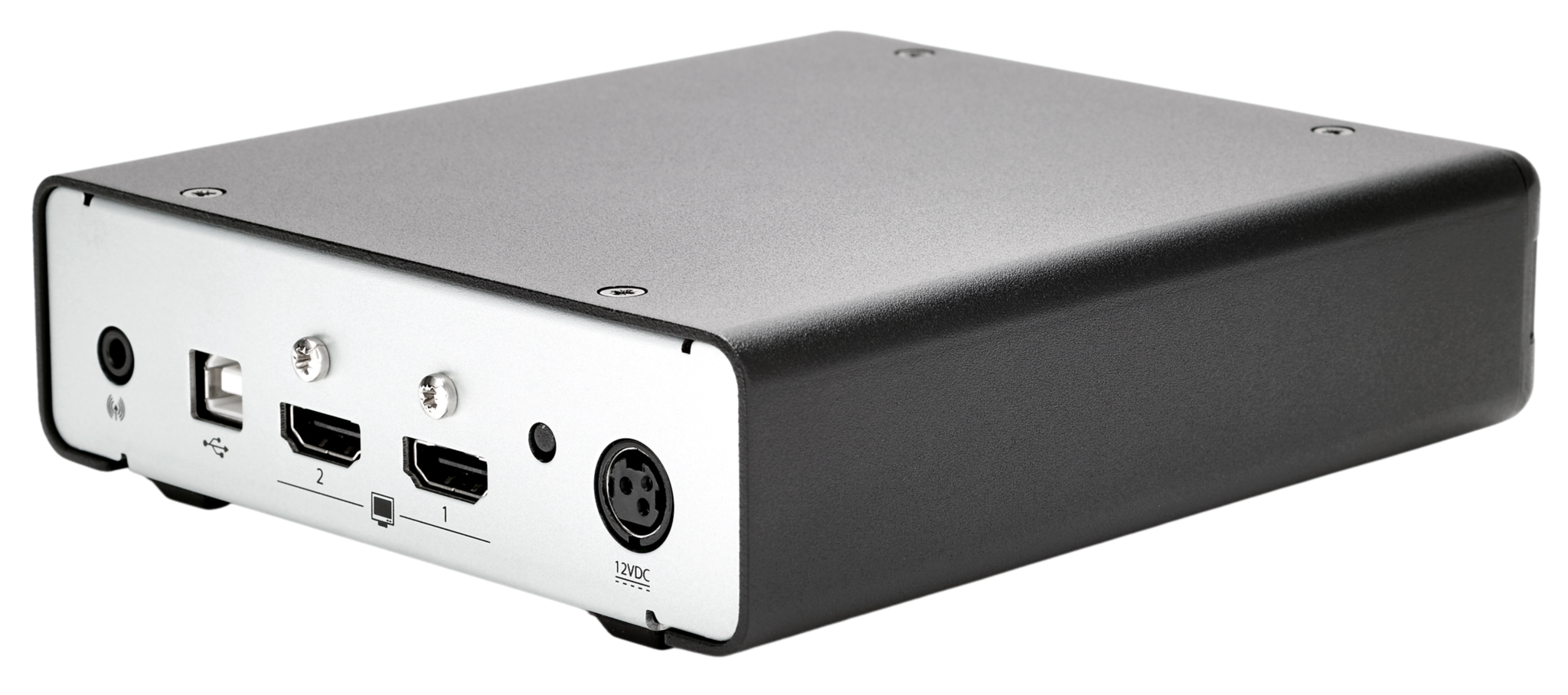

Computer Connections

USB B: 1 x 2.0 True Emulation, High Speed

USB A: 1 x 2.0 True Emulation

HDMI: 2

Link Ports

SFP: 2x

Serial Ports

Serial Standard: RS232

Maximum Baud Rate: 115.200

Serial Additional Information: RS232 or other serial standards can be passed between the units to a maximum baud rate of 115.200 by using serial to USB converters

Audio Connections

Audio Type: Analog/ Digital

Channels: 2

Audio In Ports: 1 x 3.5mm Jack

Audio Direction: Bi-directional

Size (bit): 16

Speed (kHz): 48

Additional Information: Analog audio and audio via digital video connector is uni-directional. USB audio is bi-directional

Network Support

Bandwidth: 1GbE

10/100 Support: No

Environmental

Operating Temperatures: 0-40 °C / 32 - 104 °F

Storage Temperatures: 0 -40 °C / 32 -140 °F

Operating Humidity (%): 10%- 90% (non-condensing)

Storage Humidity (%): 10%- 90% (non-condensing)

Altitude: 2000m/ 6561.7ft

Mean Time Between Failure (MTBF): 210,000h

MTBF Standard: Telcordia SR332 Issue 4 March 2016 Calculated @55C

Temperature Regulation: Fanless

Power Source

12V 3-Pin: 1x

Input Power Supply: External Power Supply Unit

Power Consumption

Maximum Power (Watts): 18

Typical Power (Watts): 7

Physical Design

Construction Material: Robust Metal Construction

U size: 1

Width: 136 mm/ 5.4 in

Height: 39 mm/ 1.5 in

Depth: 150 mm/ 5.90 in

Weight: 0.8 kg/ 1.8 lb

Compatibility

OS Compatibility: All known operating systems

Systems Requirements: Does not support HDCP or CEC control

Approvals and Standards

Approvals: CE, cULus, E476334, ICES, RCM, UKCA

Standards: ANSI 63.4, EN/IEC62368-1, EN55032/CISPR 32, EN55035/CISPR35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003

Other: Cal Prop 65, China ROHS, EU REACH, UK REACH

What's in the box?

• 1 x ALIF2124 Transmitter
• 1 x SFP-CATX-RJ45: 1GbE SFP module for CATx cable
• 1 x PSU-IEC-12VDC-1.5A: Mains Power Supply
• 2 x VSCD15: 2m/6.5ft HDMI cable
• 1 x VSC24: 2m/6.5ft USB cable
• 1  x VSC22: 2m/6.5ft Audio cable
• 1 x IEC PSU cable of country code
