Skaarhoj ETH-GPI Link

Informatie

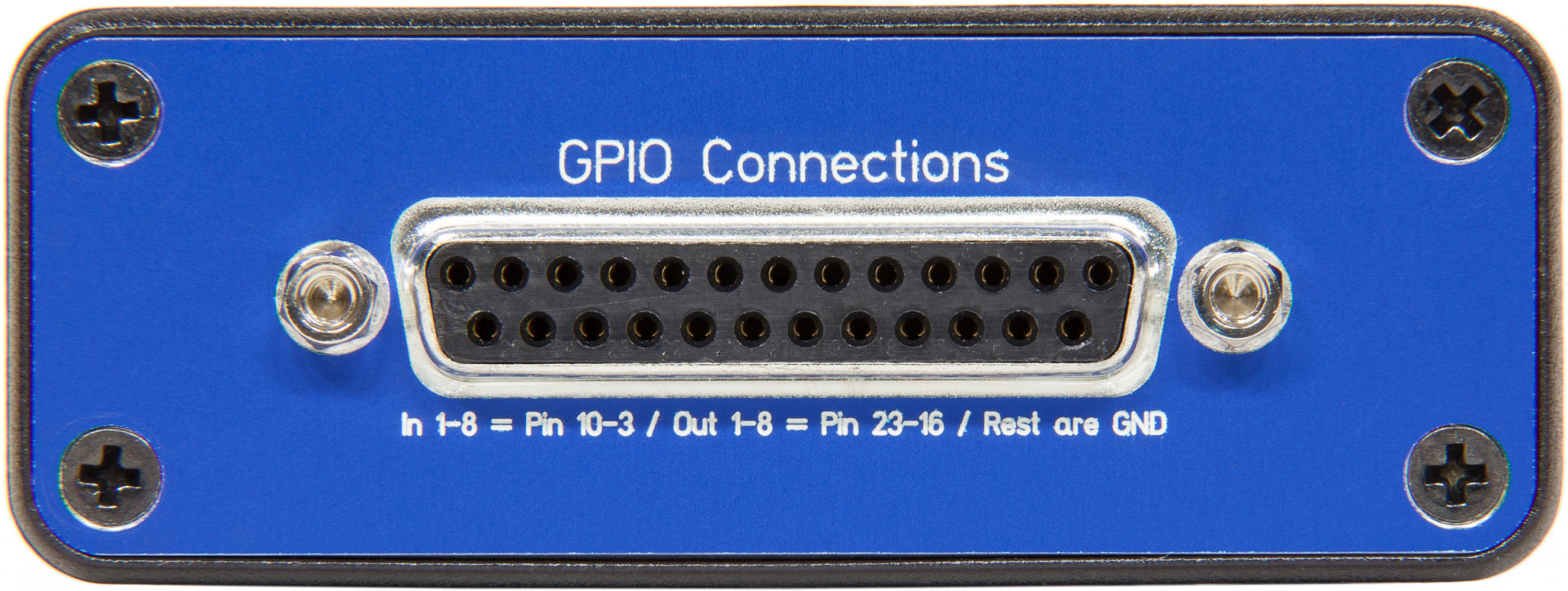

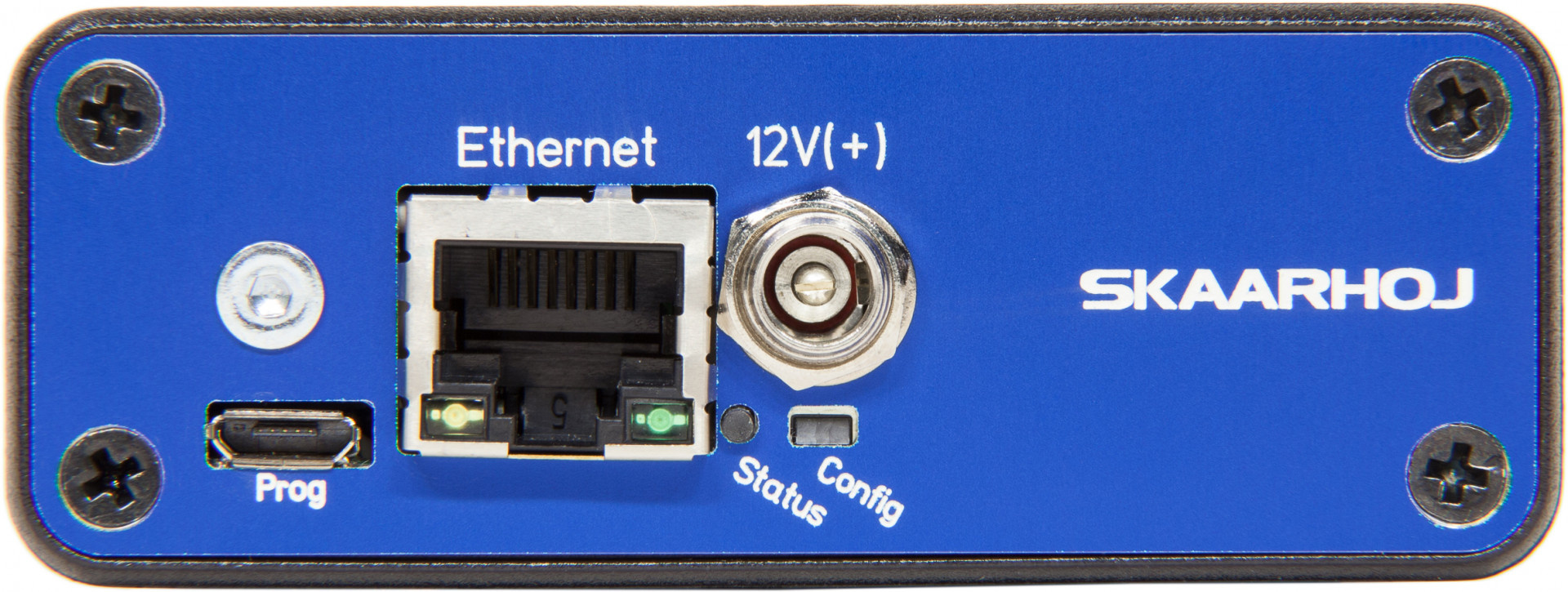

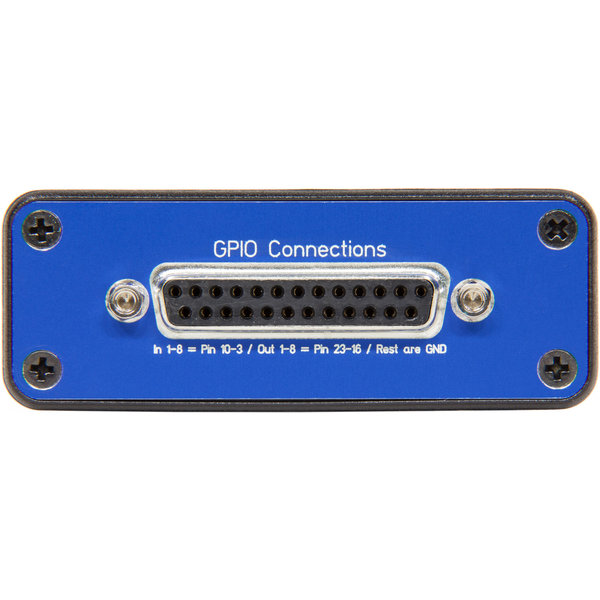

The ETH-GPI Link is a basic 2x8 digital I/O device designed to connect and control a wide range of equipment in your production setup. Via the Raw Panel protocol it integrates easily with SKAARHOJ's Blue Pill platform, where Reactor is the perfect orchestration engine to connect the I/O points with any networked device. Leveraging the UniSketch OS, some devices can also be controlled directly with parameter definition for inputs and outputs simply selected with an intuitive drop-down menu structure. The I/O points are all electrically isolated with quality relays and optocouplers. GPOs are relay-driven, grounding when activated, whereas GPIs use optical isolators for shorting to GND.

Benefits

• 2x8 channels of I/O capabilities, covering all basic needs in most situations.
• Flexible control over a wide range of devices with digital I/O, enhancing production capabilities
• Raw Panel protocol connects it easily to Blue Pill Inside devices, providing unlimited connectivity options.
• Quick and intuitive parameter setup via UniSketch OS, saving time and effort
• Electrical isolation of inputs/outputs ensures reliability and device safety
• Adaptable to various production environments with open collector and relay output compatibility

Note: For direct compatibility, SKAARHOJ Controllers with GPI inputs require open collector or relay outputs grounded. The standard HD15 tally connector on the TriCaster TC1 may need conversion from 5V potential to GND for proper operation.

What's in the box?

• 12V Power Supply
• Micro USB Cable
