AJA Kumo-1616 Compact 16x16 3G-SDI Router 1 PSU incl.

Informatie

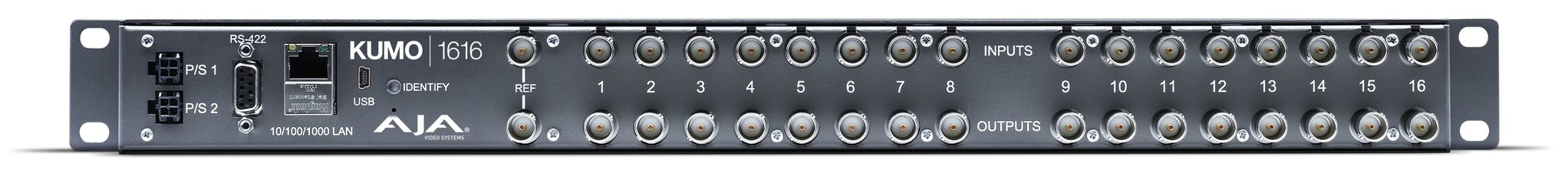

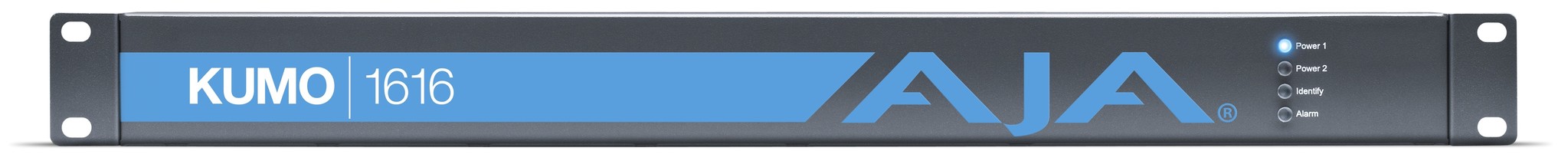

KUMO 1616 offers the perfect size for combining multiple cameras, monitors, editing systems, tape decks and file based recorders into a seamless workflow with a compact 1RU profile and support for 3G-SDI/1.5G-SDI from 16x 3G-SDI inputs and 16x 3G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link and Quad Link 4K/UltraHD workflows.

KUMO 3G-SDI routers support single link 1080p/HD/SD, high frame rate (HFR) and deep color formats. The routers offer network-based and/or physical control using KUMO CP and CP2 and offer a USB port for configuring IP addresses via AJA’s eMini-Setup software.

Built to the same quality standards as all AJA KUMO products, KUMO 1616 is the ideal choice for any situation where a balance of size, performance, and capacity are critical such as post facilities and mobile trucks.

Features

• 16x 3G-SDI inputs and 4x outputs
• Small, portable form factor
• Supports ganged dual and quad port routing for resolutions up to 4K/UltraHD
• Redundant power supply (option)
• Eight salvos per router
• Embedded web server for remote control
• Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
• Five year warranty

KUMO SDI routers are available in seven configurations: Three for 12G/6G/3G/1.5G-SDI and four for 3G/1.5G-SDI routing needs.

For 12G-SDI, look to KUMO 6464-12G for 64x 12G-SDI inputs and outputs, KUMO 3232-12G for 32x 12G-SDIinputs and outputs or KUMO 1616-12G for 16x 12G-SDI inputs and outputs.

For 3G-SDI look to KUMO 6464 for 64x 3G-SDI inputs and outputs, KUMO 3232 for 32x 3G-SDI inputs and outputs, KUMO 1616 for 16x 3G-SDI inputs and outputs and KUMO 1604 for 16x 3G-SDI inputs and 4x 3G-SDI outputs.
