The ADDERLink XDIP is designed to improve IT scalability for small to medium businesses. Utilizing a standard 1Gb/s IP network, the XDIP enables users to extend and manage critical PCs with ultra-low latency and HD video. An intuitive API delivers remote control of the matrix and allows the XDIP to be integrated into larger systems, controlled by third party software.
- Powerful KVM extender with KVM matrix functionality
- Configurable as a point to point extender or small matrix solution
- A single unit can be programmed as transmitter or receiver
- Remote control via RESTful API or HTTPS web browser
- Support for Power over Ethernet (PoE)
- Local USB and video feed through ports
Product Features
Flexible and scalable: Each XDIP unit can be configured as a simple extender, distributed KVM switch or for AV distribution. Each receiver can see up to 16 sources and each transmitter can connect to up to 256 receivers.
Configurable units: The XDIP user and computer units are identical and can be configured as a transmitter or receiver. This means the solution can be built to suit the application, and should the application change, units can be re-configured to suit.
High quality video: The XDIP supports video resolutions of up to 1920 x 1200 @ 60Hz.
Remote control: Users can remotely control their XDIP network via a RESTful API or HTTPS web browser. By managing the receiver end points through an API, users can control the matrix. The XDIP is designed to work with any third party controller via HTTPS.
Extension distance: Extension distance is linked to the IP standard of 100m with a 40% overhead for safety. Longer distances can be achieved by routing through IP infrastructure.
Audio capability: XDIP delivers bi-directional analog audio (16-bit sampling at 48kHz) passed between the local and remote units. Headphones are also supported (16 to 32 Ohms).
Plug and Play: The XDIP is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected. A simple setup wizard guides the user through set up when the device is connected.
Specification
Video Resolution
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz
Approvals / Compliance
- CE
- FCC
USB
Supports USB 2.0 HID devices (keyboard, mouse, tablet and touch)
Hardware compatibility
- All computers with HDMI, USB and analog audio can be interfaced to VGA, DVI and DisplayPort™ with appropriate adaptors
Environmental
0 to 40ºC / 32 to 104ºF

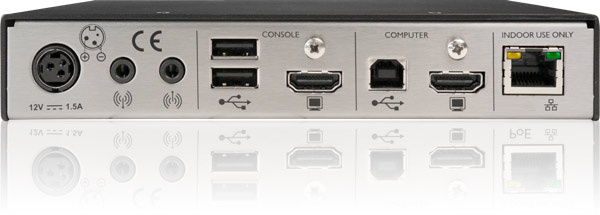

Computer connections
HDMI, Ethernet 8p8c port, USB type B, Audio 3.5mm
Console connections
HDMI, Audio 3.5mm, 3x USB type A, 8p8c Ethernet port

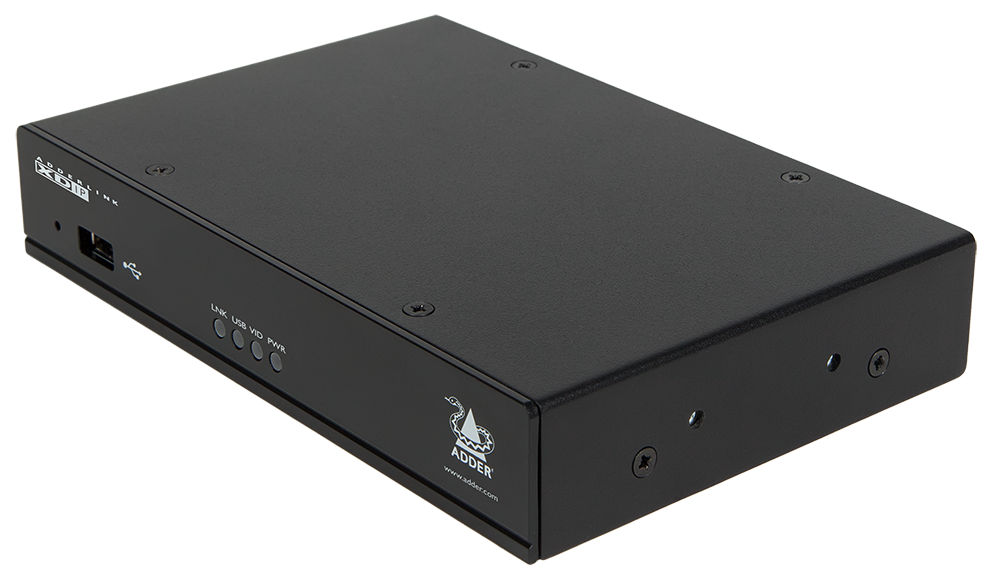

Mechanical
Compact case, robust metal construction
169mm/6.65” (w), 31mm/1.22” (h)
120mm/4.8” (d), 0.6kg/1.3lbs
Packaged size: w248mm x d290 x h55mm
Power
via External PSU
Software compatibility
All known operating systems. No drivers required.
