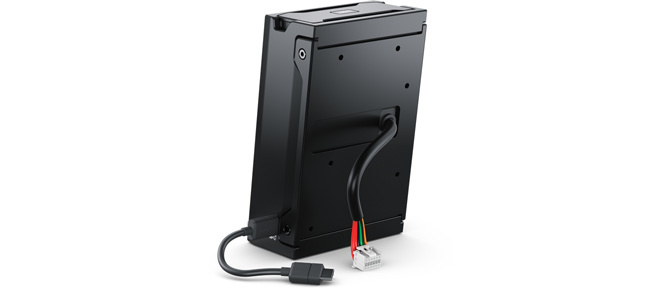

Blackmagic design URSA Mini Recorder

Informatie

Blackmagic URSA Mini Recorder lets you record Blackmagic RAW files onto 2.5 inch NVMe based 7mm U.2 SSD’s or standard 2.5 inch SSD Media with your URSA Mini Pro 12K! That means you can use commonly available and inexpensive high capacity solid state media! The NVMe based SSD media can record full resolution 12K, 8K and 4K 12‑bit RAW files plus it comes in much larger sizes so you can record longer without having to change disks!

Connections

Computer Interface

1 x USB Type-C 3.1 Gen 2 with locking screw for bidirectional data link with URSA Mini Pro 12K and software updates.

Media

Media

1 x 2.5 inch SSD for 4K, 8K and 12K recording.

Supported Codecs

Blackmagic RAW Constant Bitrate 5:1,Blackmagic RAW Constant Bitrate 8:1,Blackmagic RAW Constant Bitrate 12:1,Blackmagic RAW Constant Bitrate 18:1,Blackmagic RAW Constant Quality Q0,Blackmagic RAW Constant Quality Q1,Blackmagic RAW Constant Quality Q3,Blackmagic RAW Constant Quality Q5.

Operating Systems

Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows 10.

Power Requirements

Power Connection

12-pin Molex connector with passthrough to battery plate.
EMC Certifications
FCC, CE and KCC.

Physical Specifications

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative humidity

0% to 90% non-condensing

What's Included

Blackmagic URSA Mini Recorder

URSA Mini SSD Recorder Mount Plate with mounting screws

USB Type-C SuperSpeed+ Cable with locking screw connectors

Warranty

12 Month Limited Manufacturer's Warranty.
