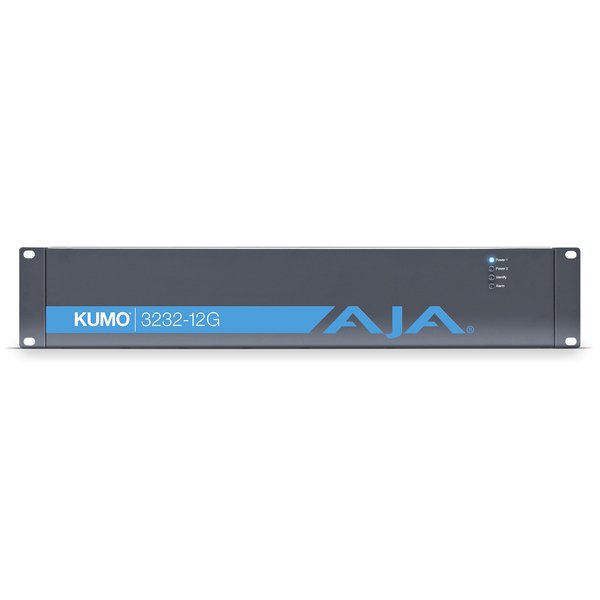

AJA KUMO-3232-12G Compact 32x32 12G-SDI Router, 1 PSU incl.

Information

KUMO 3232-12G offers increased capacity for larger configurations while maintaining a compact 2RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI with 32x 12G-SDI inputs and 32x 12G-SDI outputs.

KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable runs when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control, and mirror the physical form of AJA’s production-proven KUMO 3232 and KUMO 1616 routers, with a new USB port for configuring IP addresses via AJA’s eMini-Setup software. Built to the same quality standards as all AJA KUMO products, KUMO 3232-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.

KUMO compact SDI routers provide powerful signal control and support full broadcast specifications over 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, with quality that exceeds SMPTE specifications. The super-compact 1RU and 2RU  and 4RU formats are just a few inches deep, making them a perfect fit for any broadcast, production, or postproduction environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.

Features

• 32x 12G-SDI inputs and outputs
• Small, portable form factor
• Single cable support for 4K/UltraHD
• Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
• Redundant power supply (option)
• Eight salvos per router
• Embedded web server for remote control
• Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
• Five year warranty

KUMO SDI routers are available in seven configurations: Three for 12G/6G/3G/1.5G-SDI and four for 3G/1.5G-SDI routing needs.

For 12G-SDI, look to KUMO 6464-12G for 64x 12G-SDI inputs and outputs, KUMO 3232-12G for 32x 12G-SDIinputs and outputs or KUMO 1616-12G for 16x 12G-SDI inputs and outputs.

For 3G-SDI look to KUMO 6464 for 64x 3G-SDI inputs and outputs, KUMO 3232 for 32x 3G-SDI inputs and outputs, KUMO 1616 for 16x 3G-SDI inputs and outputs and KUMO 1604 for 16x 3G-SDI inputs and 4x 3G-SDI outputs.
